Basecamp

The Basecamp Travel Trailer was made for those who want to see the world. Built for adventure, it’s a small camping trailer that’s tough enough to go anywhere your wanderlust takes you, and comfortable enough to help you really enjoy the time you spend there. Head out to snowboard after the first fresh powder. Spend a week mountain biking deep in the forest. Pack up and go anywhere you please, with nothing holding you back.

BASECAMP 16'

SLEEPS UP TO 2

BASECAMP 20'

SLEEPS UP TO 4

Convertible Living and Sleeping Positions

• Available "X-Package" for Bigger Adventures

• Large 26" x 46" rear hatch door

• Optional Air-Tube Tent for Additional Space

• A/C, Heat, and Hot Water Systems

• Innovative aerodynamic body and roof profile

• Every Kitchen Appliance in Small, Smart Space

• Panoramic Front Window

Removable Tables

Remote Work Station

Solar Pre-wire Kit

Easy Access

Bench Storage

Spradling Marine Fabric

Flexible Living Space

12V Tank Heaters

Outdoor Shower

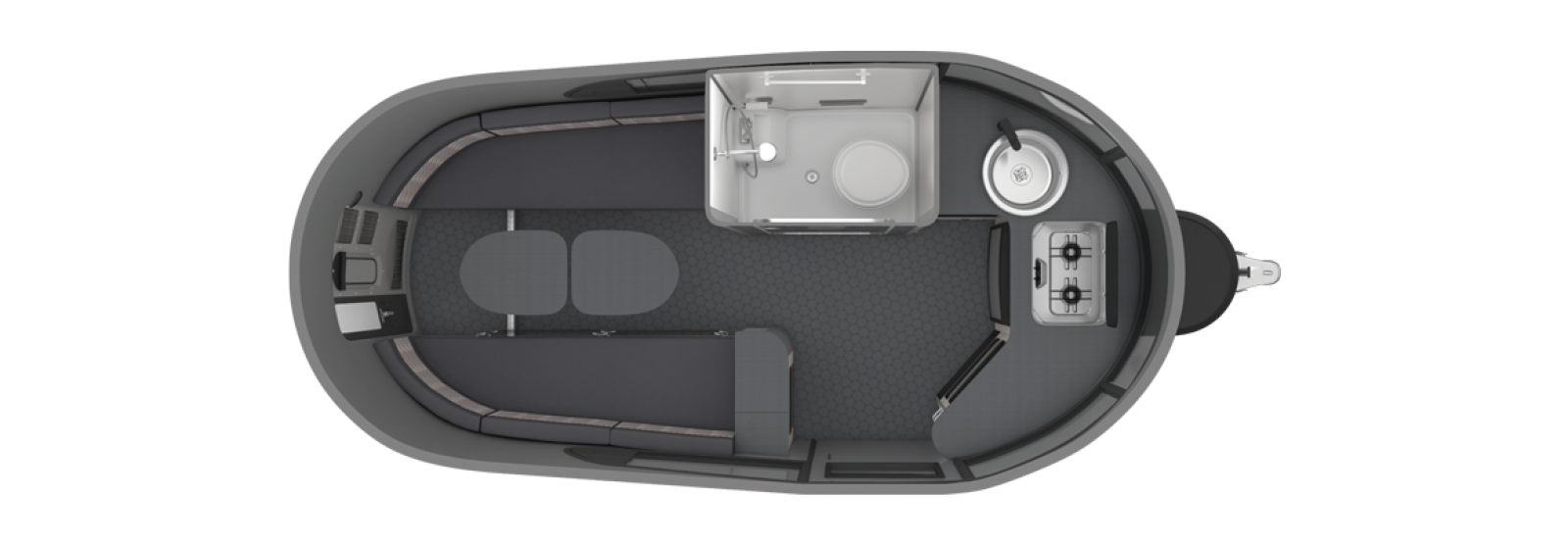

BASECAMP 16

Exterior Length

16 ft. 2 in.

Exterior Width

7 ft.

Interior Width

6 ft. 4.5 in.

Exterior Height with A/C

8 ft. 8.75 in.

Maximum Trailer Capacity (GVWR) (lbs.)

3,500

Net Carrying Capacity (lbs.)

850

Fresh Water Tank (gal.)

21

Gray Water Tank (gal.)

–

Waste Water Tank (gal.)

24 (Combo)

Ducted Furnace (BTU)

12,000

Convertible Dinette, Lounge and Bed (inches)

–

Interior Height with A/C (Entry Area)

6 ft. 3.5 in.

Microwave

OPT (0.7 cu. ft.)

Bed Configuration Seating

(24 in. x 76 in.) Half Bed (38 in. x 76 in.) Complete Bed (76 in. x 76 in.)

Exterior Height without A/C

8 ft. 7.5 in.

30 AMP Service Single A/C with Heat Strip (BTU)

OPT (9,200)

Hitch Weight with LP & Batteries (lbs.)

410

Unit Base Weight with LP & Batteries (lbs.)

2,650

Interior Windows & Skylights

8

Sleeping Capacity (excludes optional tents)

Up to 2

Refrigerator with Freezer (12v Electric)

3.1 cu. ft.

Solar Charging System with Interior Monitor

OPT 200W

Lithium Batteries (only available w/ solar options)

OPT 200Ah 2.4kWh

LP Gas Stove (Burners)

2

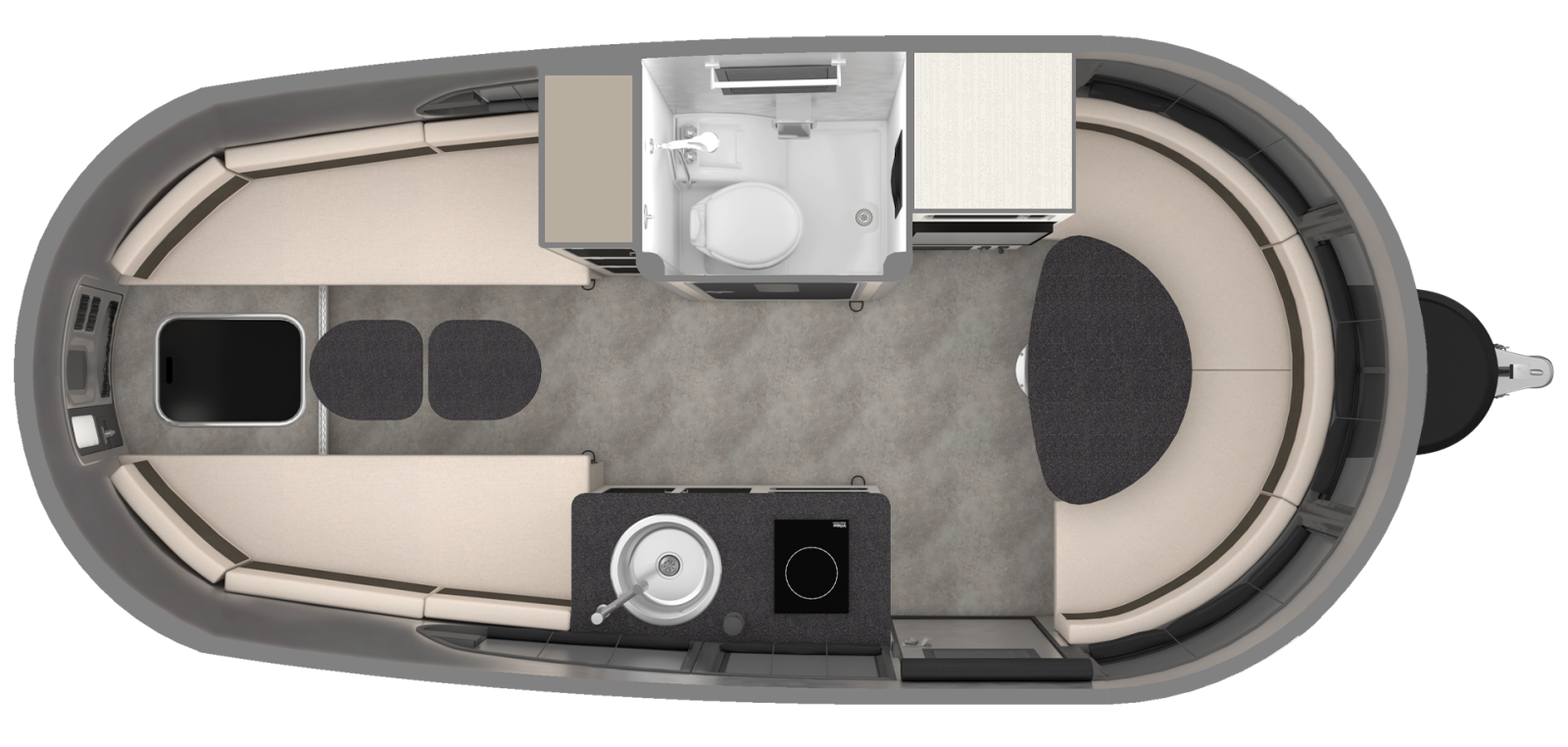

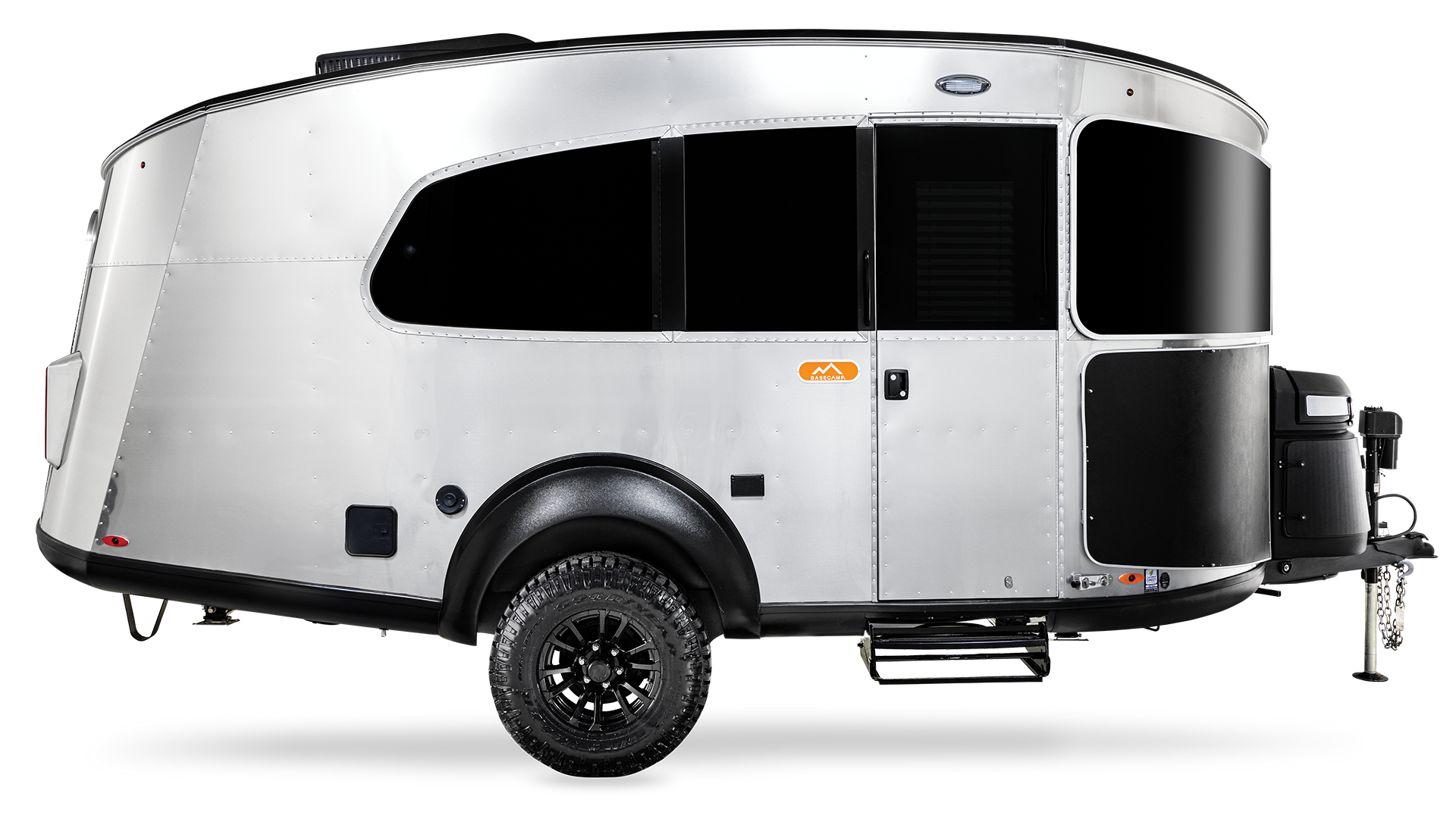

BASECAMP 20

Exterior Length

20 ft. 2 in.

Exterior Width

7 ft. 9.5 in.

Interior Width

7 ft. 2.5 in.

Exterior Height with A/C

9 ft. 1.5 in.

Maximum Trailer Capacity (GVWR) (lbs.)

4,300

Net Carrying Capacity (lbs.)

900

Fresh Water Tank (gal.)

23

Gray Water Tank (gal.)

28

Waste Water Tank (gal.)

21

Ducted Furnace (BTU)

19,000

Convertible Dinette, Lounge and Bed (inches)

43

Interior Height with A/C (Entry Area)

6 ft. 7 in.

Microwave

OPT (0.7 cu. ft.)

Bed Configuration Seating

(26 in. x 78 in.) Half Bed (41 in. x 78 in.) Complete Bed (82 in. x 78 in.)

Exterior Height without A/C

8 ft. 10 in.

30 AMP Service Single A/C with Heat Strip (BTU)

OPT (13,500)

Hitch Weight with LP & Batteries (lbs.)

500

Unit Base Weight with LP & Batteries (lbs.)

3,400

Interior Windows & Skylights

8

Sleeping Capacity (excludes optional tents)

Up to 4

Refrigerator with Freezer (12v Electric)

4.3 cu. ft.

Solar Charging System with Interior Monitor

OPT 300W

Lithium Batteries (only available w/ solar options)

OPT 200Ah 2.4kWh

LP Gas Stove (Burners)

2
